COUNTEDHEX Fastener Kit Compatible with Voron 2.4 R2 – 1,163 Pieces

The COUNTEDHEX Fastener Kit Compatible with Voron 2.4 R2 brings the core build hardware into one organized, pre-counted kit, so you do not need to source dozens of screw sizes, nuts, inserts, shims, and T-nuts separately.

The kit contains 1,163 pieces and is packed around a Voron 2.4 R2-style fastener list, with additional quantities added to frequently used hardware such as M3×8 socket head cap screws, M3 heat-set inserts, and 2020 T-nuts.

Each specification is packed separately and labeled by size, head type, and quantity, making it easier to identify the correct hardware during assembly.

Designed for a Complete Build Hardware Setup

This kit is intended for builders who want the main fastener hardware prepared before starting a Voron 2.4 R2-style build.

It includes metric screws, nuts, washers, shims, heat-set inserts, and extrusion T-nuts used across the frame, motion system, printed assemblies, covers, and other common build areas.

The fastener list is the same for 250 mm, 300 mm, and 350 mm frame sizes.

Because these machines are frequently customized, always compare the kit contents with the BOM for your exact build revision and any modifications you plan to install.

Why COUNTEDHEX Packs Extra Hardware

A minimum BOM quantity is not always the same as a practical build quantity. Small screws can be dropped, heat-set inserts can be damaged during installation, printed parts may need to be replaced, and hardware can be reused during adjustments or maintenance.

For this reason, COUNTEDHEX includes additional quantities on several high-use items rather than packing only the minimum reference count.

• 230 × M3 × 8 mm SHCS
• 150 × M3 heat-set inserts
• 120 × M3 roll-in T-nuts
• 70 × M3 hammer-head T-nuts
• Additional commonly used M3 screw lengths for assembly and replacement

Kit Contents

M5 Hardware

Item	Specification	Qty
Socket Head Cap Screw	M5 × 40 mm SHCS	27
Button Head Cap Screw	M5 × 30 mm BHCS	26
Button Head Cap Screw	M5 × 16 mm BHCS	40
Button Head Cap Screw	M5 × 12 mm BHCS	4
Button Head Cap Screw	M5 × 10 mm BHCS	43
Hex Nut	M5	20
Shim	5 × 10 × 1 mm	48
Roll-In T-Nut	M5, for 2020 extrusion	75
Hammer-Head T-Nut	M5, for 2020 extrusion	10

M4 Hardware

Item	Specification	Qty
Button Head Cap Screw	M4 × 6 mm BHCS	10
Knurled Nut	M4 DIN 466-B	5

M3 Socket Head Cap Screws

Specification	Qty
M3 × 8 mm SHCS	230
M3 × 12 mm SHCS	50
M3 × 16 mm SHCS	28
M3 × 20 mm SHCS	28
M3 × 25 mm SHCS	12
M3 × 30 mm SHCS	32
M3 × 40 mm SHCS	35
M3 × 50 mm SHCS	5

M3 Button Head, Flat Head, Nuts & Washers

Item	Specification	Qty
Button Head Cap Screw	M3 × 6 mm BHCS	18
Button Head Cap Screw	M3 × 8 mm BHCS	12
Flat Head Cap Screw	M3 × 6 mm FHCS	12
Flat Head Cap Screw	M3 × 10 mm FHCS	6
Hex Nut	M3	12
Washer	M3 DIN 125A	8

M3 Heat-Set Inserts & T-Nuts

Item	Specification	Qty
Heat-Set Insert	M3, approx. 5 mm OD × 4 mm long	150
Roll-In T-Nut	M3, for 2020 extrusion	120
Hammer-Head T-Nut	M3, for 2020 extrusion	70

Small Hardware

Item	Specification	Qty
Self-Tapping Screw	M2 × 10 mm	22
Button Head Cap Screw	M2.5 × 12 mm BHCS	5

Total Kit Quantity: 1,163 Pieces

Materials & Specifications

• Screws, nuts, washers, and shims: 304 stainless steel
• Heat-set inserts: brass
• Roll-in and hammer-head T-nuts: nickel-plated carbon steel
• Drive type: hex socket
• Metric thread sizes

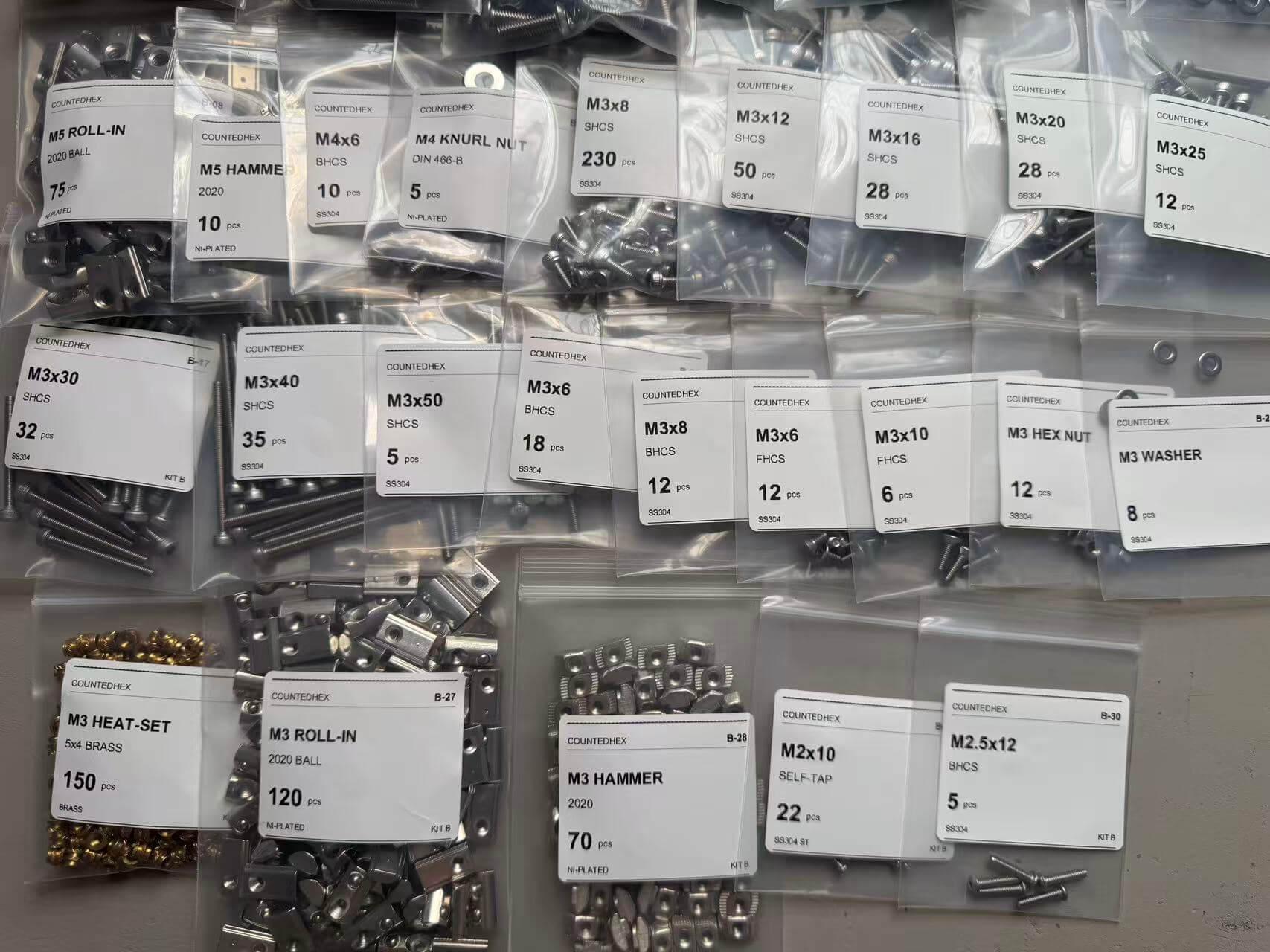

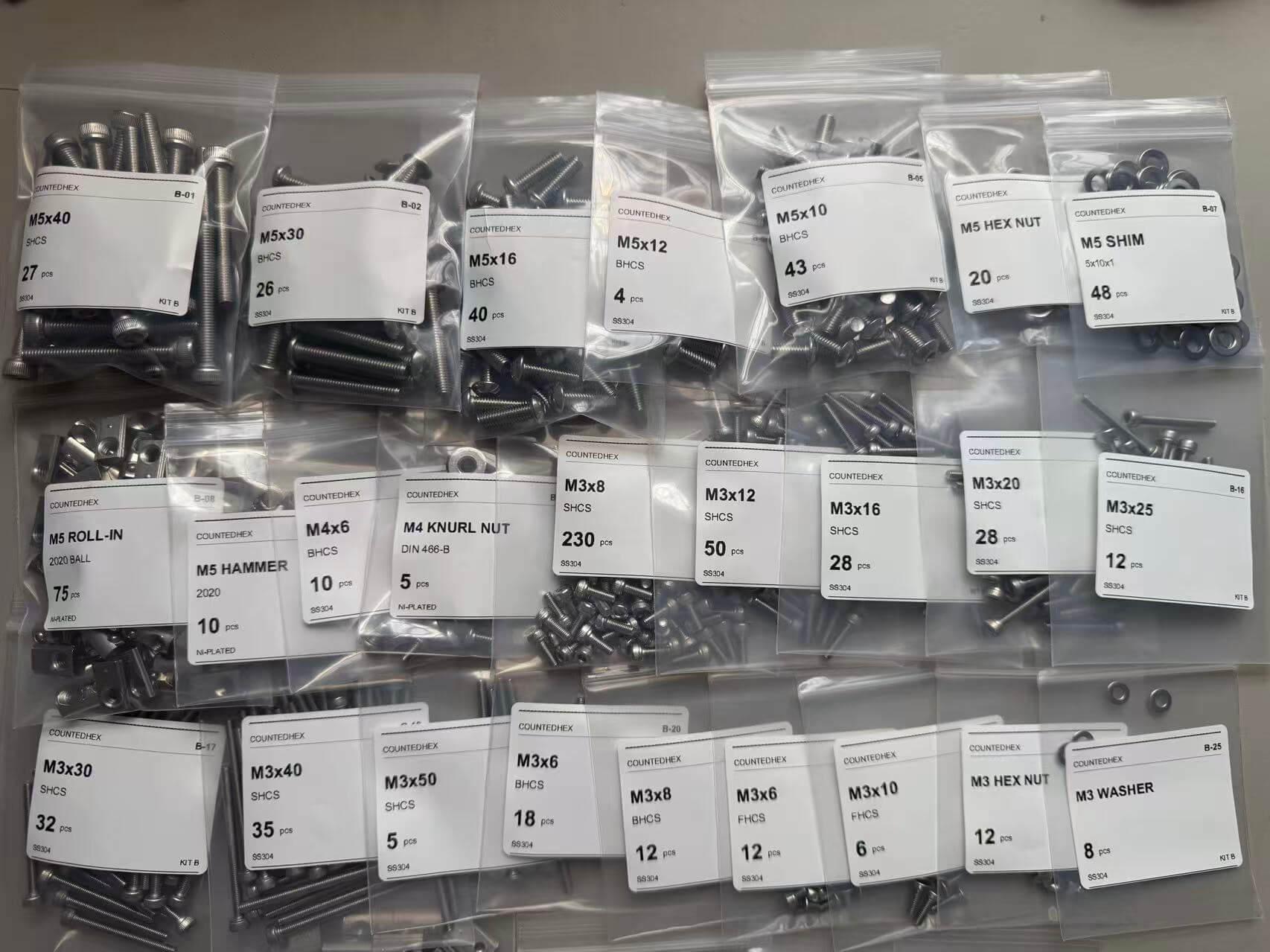

Individually Packed & Labeled

Each line item is packed in its own bag instead of being mixed into a general hardware assortment. Socket head, button head, and flat head screws are also kept separate.

A typical bag label identifies the size, head style, and quantity, for example:

M3 × 8 SHCS — 230 pcs

This makes it easier to find the correct fastener during assembly and reduces time spent sorting hardware before and during the build.

Important T-Nut Compatibility Note

The included spring-ball roll-in T-nuts fit most 2020 extrusion commonly used in community-built printer frames.

They may not roll into some tighter extrusion slots, including certain Misumi profiles. For tighter slots, use the included hammer-head T-nuts where appropriate, or install compatible T-nuts from the end of the extrusion before assembly.

Modified Builds

This kit is prepared around a standard Voron 2.4 R2-style fastener requirement. Modified configurations may require additional hardware or different fastener lengths.

If your build includes Tap, AWD, a custom toolhead, additional electronics, or other community modifications, check the BOM for those modifications before ordering.

Not Included

• Printed parts
• Aluminum extrusion or frame components
• Panels
• Foam tape
• Linear rails
• Belts
• Pulleys or bearings
• Motors
• Electronics
• Wiring
• Cable chains
• Rubber feet
• Tools

Compatibility Notice

This is an independent COUNTEDHEX product designed for compatibility with Voron 2.4 R2-style builds.

COUNTEDHEX is not affiliated with, endorsed by, sponsored by, or an authorized supplier of Voron Design. “Compatible with Voron 2.4 R2” describes the intended hardware application and fit only. This product is not an official Voron Design product.
